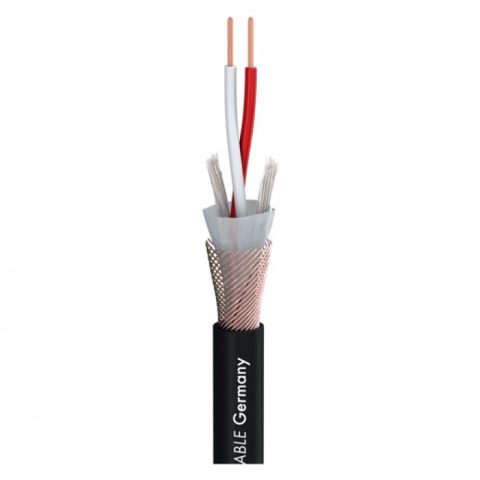

Cablu audio 2 x 0,34 mm (pret/metru), 520-0051

Pretul este per metru Binary 234 AES/EBU MKII DMX Advantages: - AES/EBU- and DMX-conformant, highly flexible - Very good shielding due to the use of a helical copper mesh screen plus an aluminium-vaporised fleece - Extremely rugged due to the special tough jacket - Only a little more expensive than a standard microphone cable Application: - Networking of scanners, lighting systems, digital mixing consoles etc. - For indoor and outdoor installation - Connection of digital audio amplifiers, DAT recorders etc. Technical Data: - Properties: Analog - Properties: Digital 110 Ω AES / EBU - Properties: OFC oxygen free copper - Application area: ELA 100 V - Application area: Studio / Broadcast - Application area: Mobile outdoor / indoor - Application area: Installation - Application area: Stage / live - Application: DMX - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 6,2 mm - Number of Channels (AES/EBU, DMX): 1 - Inner conductor (AES/EBU, DMX): 2 - Inner conductor (AES/EBU, DMX): 0,34 mm² - Inner conductor Ø (AES/EBU, DMX): 0,66 mm - AWG (AES/EBU, DMX): 22 - Shielding: Copper spiral shielding + aluminum steamed fleece - Copper strands (AES/EBU, DMX): 19 - Copper strand Ø (AES/EBU, DMX): 0,15 mm - Conductor insulation material: Foam / Skin-PE - Conductor insulation Ø: 1,5 mm - Weight per 1 m: 50 g - UV-resistant: yes - Fire load per m: 0,17 kWh - Style variant: round - Shielding factor: 100 % - Packing: 100 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 6,2 mm - Height: 6,2 mm - Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF - Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF - Impedance: 110 Ω - Insulation resist. per 1 km: 1 GΩ - Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ - Conductor resistance per 1 km: 53 Ω - Shield. resistance per 1 km: 28 Ω - BPVo-Euroclass: Fca
